Pulp Molded Cup Lid Machine

Small draft angle production for high quality eco-friendly molded fiber packaging. Suitable for the production of pulp molded cup lid, mobile phones, daily necessities, digital products and other exquisite high-grade lining or outer packaging products.


Daily Capacity: 80,000 – 90,000 Lids (Base On 80 / 90mm Cup Lid)

Pulp Molded Cup Lid Machine, paper lid making machine, paper lid forming machine

Negative Angle Buckle, to Secure Better Elegance and No-leak

Multiple patented tech ensure high precision, efficient and stable running.

Platen Size: 950 or 1430 x 750 mm
Prepress equipped for negative angle
Max. Pressure 55Ton

Main Features

  • High precision,high stability;
  • Can produce less than 0 degrees (i.e. upside down) cup lid; (No edge hoop process);
  • Forming and hotpressing two-in-one design;
  • Trimming and punching integrated design; (Low cost, the production line stalling rate is high);
  • Demolding angle reached 0 degree,R0.3 for IP package;
  • Position, pressure and temperature can be adjusted accurately.

Technical Parameters

Machine StructurePrepressing Station x1, Hotpress Upper Station x1, Transfer Station x1,
Forming Station x1, Hotpress Lower Station x1
Platen Size950 × 750 mm
Working PressurePrepressing 15 Ton, Hotpress 40 Ton
Cycle Time40-120 Seconds for Most Products
Heating EnergyElectricity / Conduction Oil
Raw MaterialPaper Pulp
Max Product Height80 mm / Can Be Customized for Deeper Product
Production ApplicationCoffee Cup Lid, Rigid Box, etc
Packagings with Critical Draft Angle, R Angle or Complicated Structure

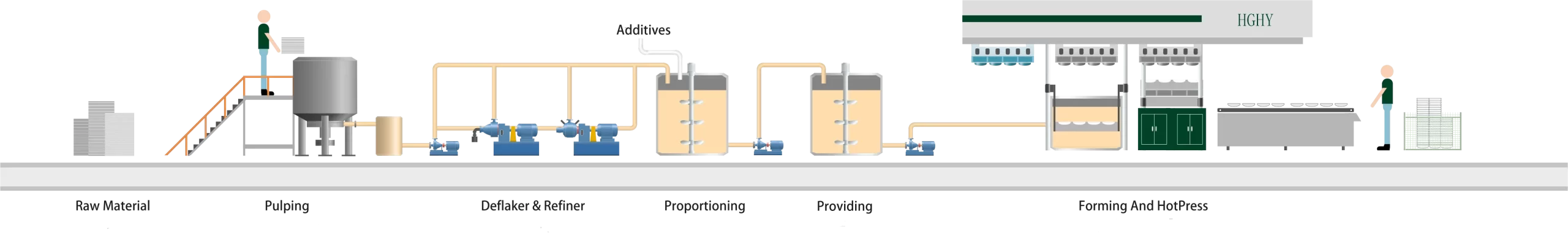

Production Process

Pulp Molded Cup Lid Machine (paper lid making machine, paper lid forming machine) is composed of pulping system, multiple sets of main system (including forming, hotpressing, trimming, stacking and robot), auxiliary system, making pulp molded tableware and food packagings.

Pulp Molded Cup Lid Machine

Project Cases

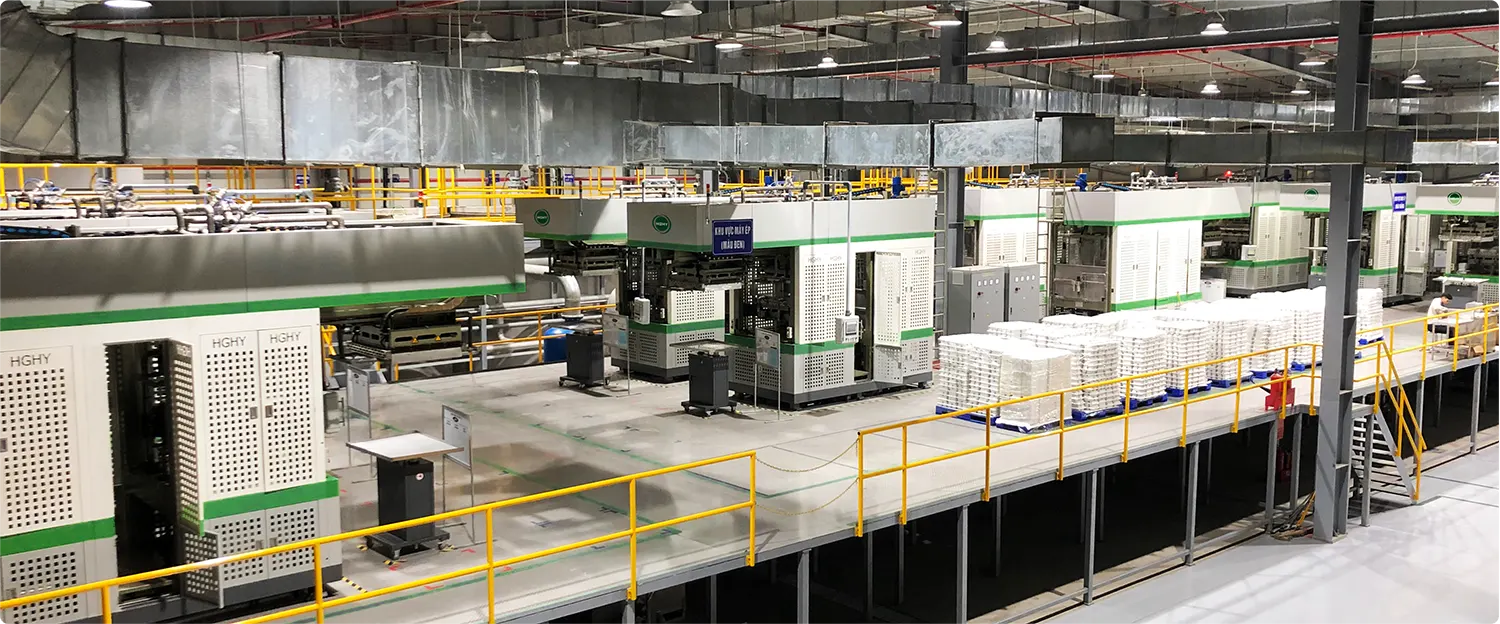

Pulp Molded Cup Lid Machine_Factory case


Pulp Molded Cup Lid Machine_Multiple Applications 01

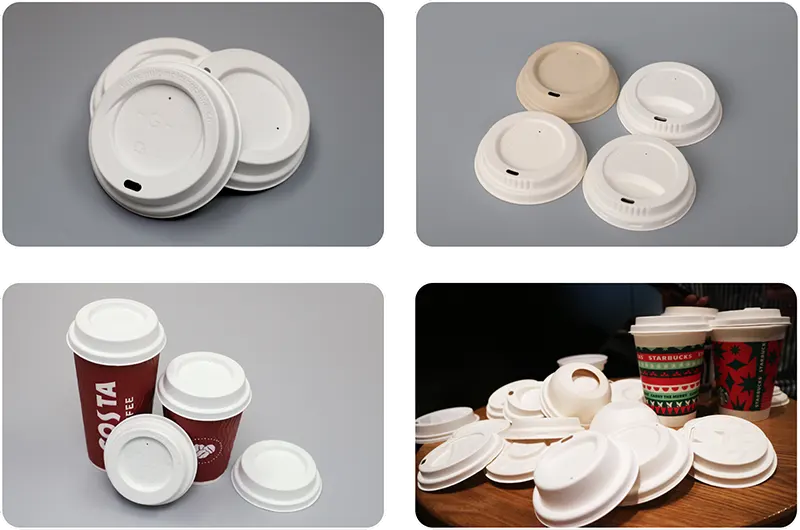

Pulp Molded Cup Lid Machine_Multiple Applications 02

Raw Material

Pulp Thermoforming Machine_Fotolia

Bagasse Pulp

Bagasse is a by-product of sugar mills and a typical raw material for paper fiber. The average fiber length is 1.47-3.04mm, and the fiber length of bagasse is 1.0-2.34mm. It has the advantages of moderate strength and moderate toughness. It is currently the most suitable raw material for pulp molding products. Currently, sugarcane is mostly used in lunch boxes and tableware products Slag fiber, as well as some high-end mobile phone holders and cosmetic packaging also use this raw material.

Pulp Thermoforming Machine_AdobeStock

Bamboo Pulp

Bamboo is an extremely rapidly regenerating raw material, very environmentally friendly but odorless - naturally antibacterial or antimicrobial and hypoallergenic. Bamboo pulp is made from bamboo such as Moso bamboo, Phoebe bamboo, Cizhu, etc., and is usually prepared by sulfate method and caustic soda method. Bamboo pulp is medium fiber length pulp, fine and soft. Pulp has high bulk and tear, low bursting strength and tensile strength, and high mechanical strength.

Pulp Thermoforming Machine_Birkenbaeume

Wood Pulp

Wood pulp is pulp made from wood. According to pulping materials, pulping methods and pulp uses, etc., it can be roughly divided into two categories: coniferous wood and hardwood.


Frequently Asked Questions

How long will it take from order to ship?

The estimated production time will be around  130 days, from the receipt of order, deposit payment and/or L/C.

Do you send engineers to installation?

Our company will arrange 2 people as guide installers, and the customer will arrange installers. It usually spents 60-90 days that depends on the number of equipment purchased.

Does your machine have a high rate of return? How long will it take to return?

The rate of return is high, and it usually pays back in 2-3 years.

How many countries used your equipment ?

HGHY has helped more than 300 clients in over 60 countries setting up their plants with leading capacity and superior quality production.
