Molded Fiber Tableware Machine

New tech created for new market, has been selling more than 100 units since its launch. Suitable for the production of plate, fast food box, bowl, cup and other environmental protection molded fiber tableware products.


Daily Capacity: Up to 1000KG (Depend on Product)

HGHY – Molded Fiber Tableware Machine Robot System

Simple Or Advanced, Be Comfortable With Rapid Development

New tech created for new market, has been selling more than 100 units since its launch.

 Platen Size: 980 x 940 mm
 1 Forming 2 Hotpressing
–  International Branded Robot Auto Trimming

Main Features

  • High cost performance intelligent control system;
  • Flexible, accurate and stable production;
  • Safe and simple operation and maintenance;
  • Remote intelligent production monitoring;
  • Trimming and stacking integrated design;
  • Robots connect the processes intelligently;

Technical Parameters

Product ApplicationCommon Tableware, CupCommon Tableware, Cup, Cup Lid, Egg CartonCommon Tableware, Cup, Cup Lid, Egg Carton,  High-end Packaging
Cycle Time20-30 Sec / Drop20-40 Sec / Drop20-40 Sec / Drop
Daily Capacity800 KG (±10%)800 – 1200 KG800 – 1500 KG
Platen Size980 × 940 mm
Heating EnergyElectricity / Conduction Oil
Temperature ControlSingle-point control (accurate control is optional)Multi-point control,
accurate control ± 2 degrees
Forming MethodReciprocatingReciprocating
(Positive Suction)
(Positive Suction)
Data Storage10+ Copies
Process Parameters
20+ Copies
Process Parameters
40+ Copies
Process Parameters
Data CollectionOptionalOnline Monitoring and CollectionOnline Monitoring and Collection
Safety ProtectionSelf-locking & Auto-stop Design
Raw MaterialPaper Pulp
Max Product Height80 mm / Can Be Customized for Deeper Product

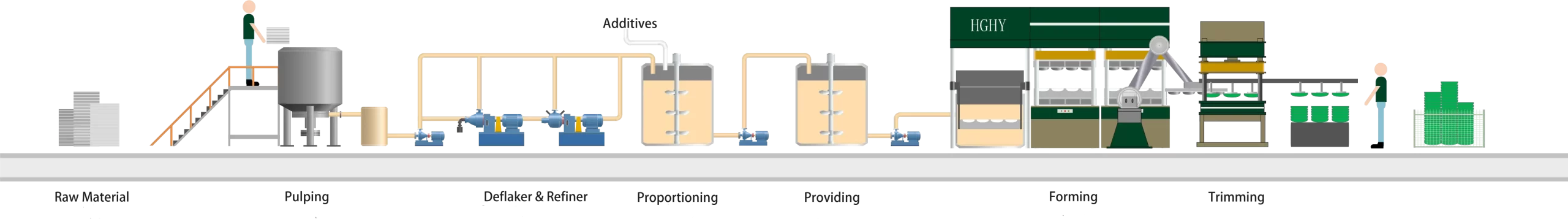

Production Process

Molded fiber tableware machine is composed of pulping system, multiple sets of main system (including forming, hotpressing, trimming, stacking and robot), auxiliary system, making pulp molded tableware and food packagings.

Molded Fiber Tableware Machine

Project Cases

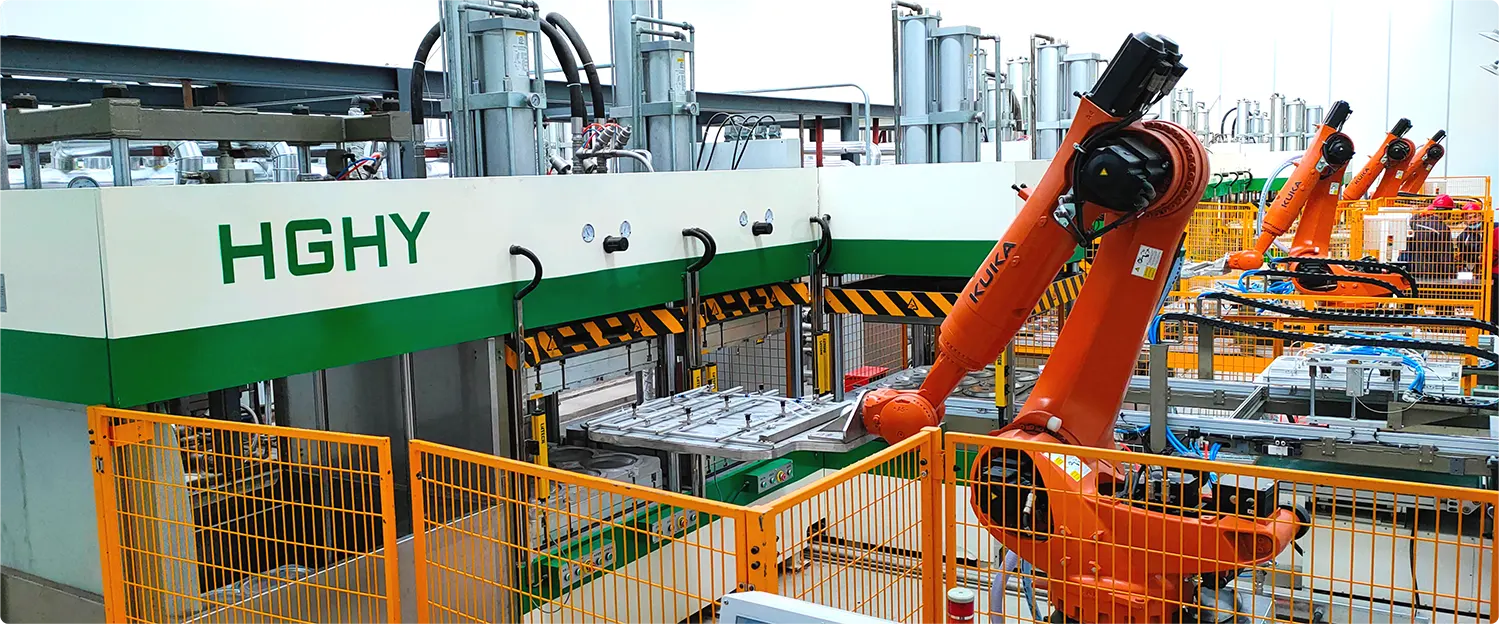

Molded Fiber Tableware Machine - Factory case

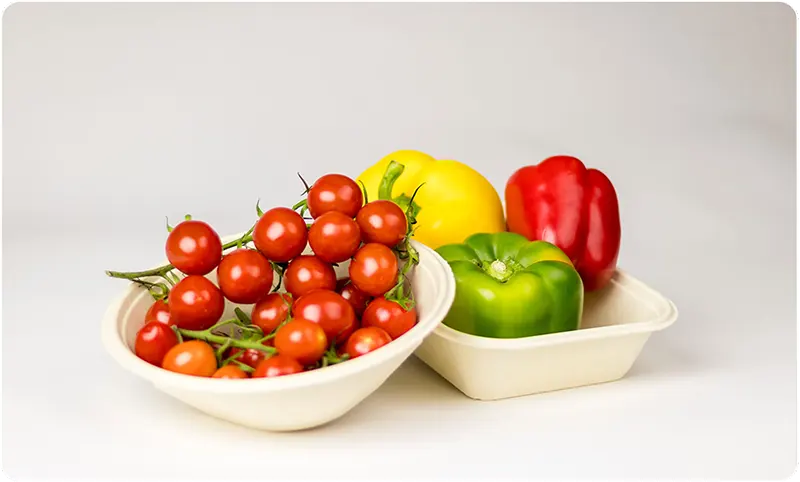

Molded Fiber Tableware Machine - Multiple Applications 01

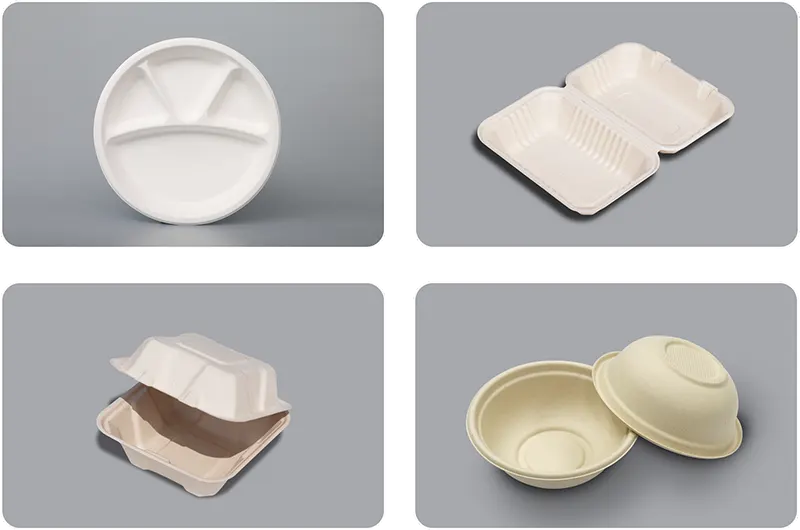

Molded Fiber Tableware Machine - Multiple Applications 02

Raw Material

Pulp Thermoforming Machine_Fotolia

Bagasse Pulp

Bagasse is a by-product of sugar mills and a typical raw material for paper fiber. The average fiber length is 1.47-3.04mm, and the fiber length of bagasse is 1.0-2.34mm. It has the advantages of moderate strength and moderate toughness. It is currently the most suitable raw material for pulp molding products. Currently, sugarcane is mostly used in lunch boxes and tableware products Slag fiber, as well as some high-end mobile phone holders and cosmetic packaging also use this raw material.

Pulp Thermoforming Machine_AdobeStock

Bamboo Pulp

Bamboo is an extremely rapidly regenerating raw material, very environmentally friendly but odorless - naturally antibacterial or antimicrobial and hypoallergenic. Bamboo pulp is made from bamboo such as Moso bamboo, Phoebe bamboo, Cizhu, etc., and is usually prepared by sulfate method and caustic soda method. Bamboo pulp is medium fiber length pulp, fine and soft. Pulp has high bulk and tear, low bursting strength and tensile strength, and high mechanical strength.

Pulp Thermoforming Machine_Birkenbaeume

Wood Pulp

Wood pulp is pulp made from wood. According to pulping materials, pulping methods and pulp uses, etc., it can be roughly divided into two categories: coniferous wood and hardwood.


Frequently Asked Questions

How long will it take from order to ship?

The estimated production time will be around  130 days, from the receipt of order, deposit payment and/or L/C.

Do you send engineers to installation?

Our company will arrange 2 people as guide installers, and the customer will arrange installers. It usually spents 60-90 days that depends on the number of equipment purchased.

Does your machine have a high rate of return? How long will it take to return?

The rate of return is high, and it usually pays back in 2-3 years.

How many countries used your equipment ?

HGHY has helped more than 300 clients in over 60 countries setting up their plants with leading capacity and superior quality production.
